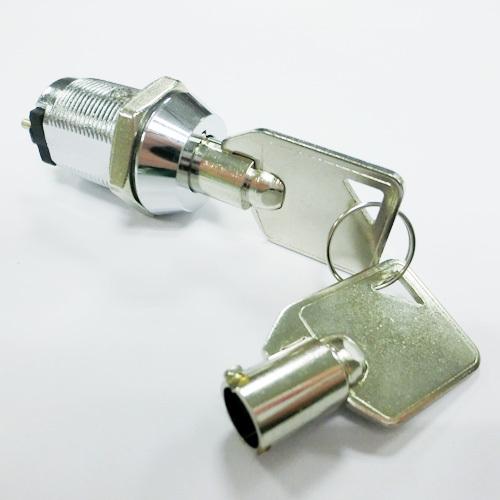

Switche Locks
- Model：
- S301
Detail Specifications
Application:
Security Systems, Alarm, Computer, Telephone…etc.
Description:
* Zinc Alloy Die-cast housing and cylinder, chrome plated.
* Sliver Plated Contacts & Terminals.
* 2 Key ways (ON-OFF)
* The Key can be drawn out at both ON and OFF position.
* Upon request the key can be drawn out at “ON” or “OFF” position only.
Specification:
* Contact Rating: 2A 125VAC, 1A 250VAC
* Contact Resistance: Max. 10 Milli-Ohms
* Insulation Resistance: Min. 500Meg-Ohms (500VDC)
* Dielectric Strength: 1000VAC-1 Minute.
* Weight: 61.5g / unit.
* Terminal: 2
* Key Pulls: 2
* Key Way: 90°
* Position: OFF / ON
